SS 304 Slitting Coils are precision-width strips produced by slitting wider stainless steel coils into narrower widths for manufacturing and fabrication. Made from UNS S30400, this austenitic stainless steel grade contains chromium and nickel, providing a useful combination of corrosion resistance, formability and weldability for components manufactured through stamping, roll forming, bending and other sheet-metal processes.
Metalloy Steel supplies Stainless Steel 304 Slit Coils for industrial buyers requiring specific strip widths and thicknesses. Available size options include 0.05 mm to 4 mm thickness and 5 mm to 300 mm width, subject to availability and production requirements. Contact us with your required dimensions, finish, quantity and applicable material standard to enquire about specifications and pricing.
| Parameter | Details |
|---|---|
| Material Grade | Stainless Steel 304 |
| UNS Designation | S30400 |
| JIS Designation | SUS 304 |
| EN Designation | X5CrNi18-10 |
| Thickness | 0.05 mm to 4 mm |
| Width | 5 mm to 300 mm |
| Applicable Standards | ASTM A240/A240M and ASTM A480/A480M |
| Hardness | Full Hard, Rolled, 1/2 hard or Half Hard, 1/4 Hard or Quarter Hard, 3/4 Hard, Soft or Annealed |
| Surface Finish | Cold rolled (CR), Hot rolled (HR), 2B, BA |
| Standard | UNS | W.Nr. | JIS | EN | BS | AFNOR | GOST |
|---|---|---|---|---|---|---|---|
| Equivalent Designation | S30400 | 1.4301 | SUS 304 | X5CrNi18-10 | 304S31 | Z7CN18-09 | 08Х18Н10 |
| Element | Composition (% by weight) |
|---|---|
| Carbon (C) | 0.08 max. |
| Manganese (Mn) | 2.00 max. |
| Silicon (Si) | 0.75 max. |
| Phosphorus (P) | 0.045 max. |
| Sulphur (S) | 0.030 max. |
| Chromium (Cr) | 18.0–20.0 |
| Nickel (Ni) | 8.0–10.5 |
| Nitrogen (N) | 0.10 max. |
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa min. |
| Yield Strength (0.2% offset) | 205 MPa min. |
| Elongation | 40% min. |
| Melting Range | Approximately 1400–1450°C |

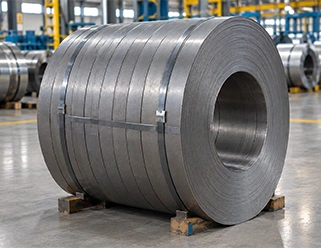

Feature a mill finish and are suitable for applications where the specified surface condition meets fabrication requirements.

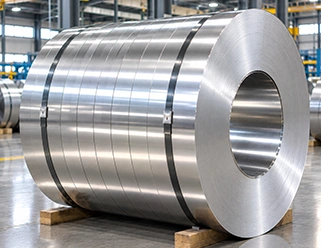

Offer a smoother surface and controlled thickness for precision stamping, forming and component manufacturing.

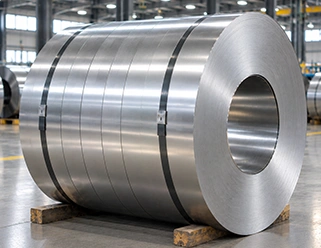

Have a smooth, moderately reflective finish suitable for general industrial and fabricated components.

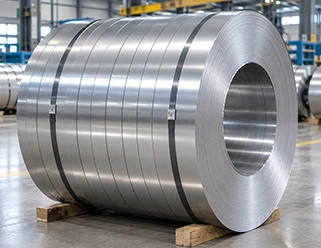

Feature a bright, smooth surface for applications requiring a more reflective finish.
Narrow-width material supports production processes that require defined strip dimensions.
The austenitic structure supports bending, stamping and forming when suitable tooling and processing conditions are used.
SS 304 can be welded using appropriate procedures, with process selection based on strip thickness and final application.
Chromium provides resistance to many everyday atmospheric and process environments; suitability depends on exposure conditions.
Slit strips can be used as feedstock for components made through roll forming, cutting and stamping.

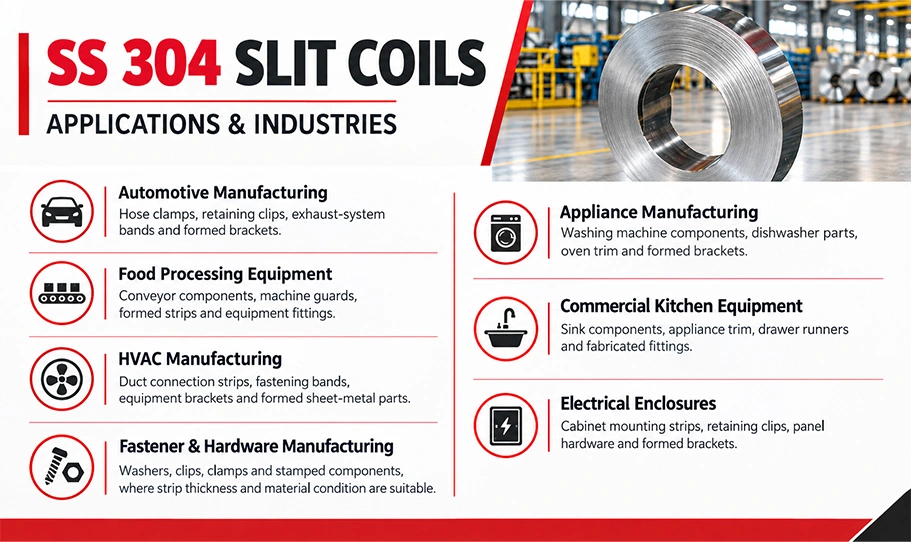

| Industry | Applications |
|---|---|
| Automotive Manufacturing | Hose clamps, retaining clips, exhaust-system bands and formed brackets |
| Appliance Manufacturing | Washing machine components, dishwasher parts, oven trim and formed metal brackets |
| Food Processing Equipment | Conveyor components, machine guards, formed strips and equipment fittings |
| Commercial Kitchen Equipment | Sink components, appliance trim, drawer runners and fabricated fittings |
| HVAC Manufacturing | Duct connection strips, fastening bands, equipment brackets and formed sheet-metal parts |
| Electrical Enclosures | Cabinet mounting strips, retaining clips, panel hardware and formed brackets |
| Fastener & Hardware Manufacturing | Washers, clips, clamps and stamped components, where strip thickness and material condition are suitable |
Metalloy Steel can discuss documentation and inspection requirements for SS 304 Slitting Coils, subject to availability and the agreed purchase specification.
EN 10204 Type 3.1 documentation, where available and agreed for the supply.
Review of the material certificate or testing as specified.
Tensile strength, yield strength, elongation and hardness checks where required by the governing specification.
Verification of strip thickness and width against the order requirements.
Assessment of the surface finish, slit edges and visible condition against agreed requirements.
Can be discussed when specified in the purchase order and confirmed before supply.
SS 304 Slitting Coils are narrow stainless steel strips cut from wider coils. They are used in manufacturing processes that require specific strip widths and thicknesses.
The requested range is 0.05 mm to 4 mm, subject to availability and processing capability. Confirm the required thickness tolerance when enquiring.
The requested width range is 5 mm to 300 mm. Final availability depends on the parent coil, slit-width requirements and order quantity.
ASTM A240/A240M covers stainless steel plate, sheet and strip, while ASTM A480/A480M provides general requirements for flat-rolled stainless steel products. The applicable specification should be confirmed for the exact product and order.
Metalloy Steel serves buyers looking for an SS 304 Slitting Coils Supplier and Stockist in India. Contact our team with your strip dimensions, finish and quantity requirements to discuss availability and obtain a quotation.
