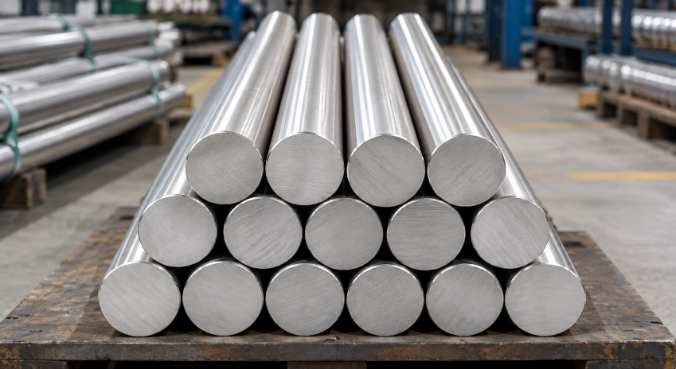

Inconel 600 Round Bars are made from nickel-chromium-iron alloy UNS N06600, known for high-temperature oxidation resistance and corrosion resistance. They are used in furnace equipment, heat-treatment components and chemical-processing systems. The alloy gains strength primarily through cold working rather than precipitation hardening.
Metalloy Steel supplies Inconel 600 Round Bars in India for industrial, machining and fabrication needs. Buyers can specify ASTM B166 UNS N06600, along with the required diameter, length, quantity and material condition, to check availability and request a quotation.
Complete mechanical, dimensional, and standard parameters for ASTM B166 UNS N06600 round bars and rods.
| Specification Parameter | Details |
|---|---|
| Product Name | Inconel 600 Round Bars |
| Material Type | Nickel-Chromium-Iron Alloy |
| Common Designation | Alloy 600 |
| UNS Designation | N06600 |
| ASTM Standard | ASTM B166 for bars, rods and wire |
| Werkstoff Number | 2.4816 |
| EN Material Reference | 2.4816 |
| JIS Reference | NCF 600 |
| Nickel Content | 72.0% minimum, including cobalt |
| Chromium Content | 14.0–17.0% |
| Iron Content | 6.0–10.0% |
| Available Forms | Round bars and rods |
| Supply Condition | Annealed or cold-worked, subject to specification and availability |
| Dimensions | Diameter and length as per requirement |
| Surface Finish | Black, bright or machined, subject to availability |
Graded chemical chemistry and physical-mechanical metrics of Inconel 600 (UNS N06600 / 2.4816).
| Standard / Designation | Reference |
|---|---|
| Alloy Name | Inconel 600 / Alloy 600 |
| UNS | N06600 |
| Werkstoff Number | 2.4816 |
| JIS Reference | NCF 600 |
| AFNOR | NC15FE11M |
| EN / European Reference | NiCr15Fe |
| Element | Chemical Symbol | Composition (%) |
|---|---|---|
| Nickel + Cobalt | Ni + Co | 72.0 min |
| Chromium | Cr | 14.0–17.0 |
| Iron | Fe | 6.0–10.0 |
| Carbon | C | 0.15 max |
| Manganese | Mn | 1.00 max |
| Silicon | Si | 0.50 max |
| Copper | Cu | 0.50 max |
| Sulfur | S | 0.015 max |
| Property | Reference Value |
|---|---|
| Density | 8.47 g/cm³ |
| Melting Range | 1354–1413°C |
| Tensile Strength | 655 MPa (95,000 psi) |
| Yield Strength (0.2% Offset) | 310 MPa (45,000 psi) |
| Elongation | 40% |
| Hardness | Up to 92 HRB for specified annealed material |
For other available alloy and stainless steel grades, explore our Round Bars range.
Estimate real-time linear mass and total order weight for Inconel 600 and other industrial alloy round bars with our live 3D visualizer engine.
Inconel 600 Round Bars can be supplied in different conditions and finishes depending on machining, component manufacturing and dimensional requirements.
Offer improved ductility and workability, making them suitable for machining and fabrication requirements.
Provide increased strength and hardness through controlled deformation, depending on the degree of cold working.
Feature a smooth, bright surface finish and are suitable for precision machining and applications requiring better surface quality.
Supplied in specified lengths to match component dimensions, helping reduce excess material and additional cutting during fabrication.
* Availability of each condition, finish and dimension should be confirmed before ordering.
Engineered for exceptional performance in elevated temperatures and severe corrosive media.
Chromium in the alloy helps form a protective oxide layer, supporting use in selected high-temperature furnace and heat-treatment environments.
The nickel-chromium-iron composition provides resistance to various alkaline solutions, high-purity water and certain chemical-processing environments. Suitability depends on concentration, temperature and contaminants.
Inconel 600 is used where chloride-ion stress-corrosion cracking failure is a concern, although the complete operating environment and applied stresses must still be assessed.
The alloy can be formed, machined and welded using suitable procedures. Its work-hardening behaviour makes tooling, cutting conditions and heat input important during fabrication.
Typical components and industrial sectors relying on UNS N06600 nickel-chromium-iron alloy round bars.
| Industry | Typical Components / Uses |
|---|---|
| Heat Treatment & Industrial Furnaces | Furnace fixtures, supports, retorts and selected heat-treatment components |
| Chemical Processing | Machined parts for compatible chemical-processing equipment and systems |
| Petrochemical Processing | Components used in selected process environments involving elevated temperatures or corrosive media |
| Nuclear Engineering | Components for specified nuclear-service applications, subject to applicable design and qualification requirements |
| Food Processing | Selected equipment components where the operating environment and hygiene requirements permit the alloy |
| Manufacturing & Engineering | Machined shafts, pins, bushings and custom-engineered parts where Alloy 600 properties are suitable |
Metalloy Steel can discuss inspection and documentation requirements for Inconel 600 Round Bars according to the purchase specification and order scope.
Can be requested where available to document heat-specific chemical composition and mechanical test results.
Can help verify alloy identity and distinguish UNS N06600 from other nickel alloys.
Confirms the specified elemental composition when included in the inspection scope.
Tensile strength, yield strength, elongation and hardness testing can be specified according to applicable requirements.
Checks bar diameter, length, surface condition and specified tolerances.
Inspection by an agreed independent agency may be requested, subject to project scope and availability.
Clear technical answers to frequent queries regarding Inconel 600 round bar supply, properties, and applications.
Yes, enquiries can specify ASTM B166 and UNS N06600, along with the required dimensions and documentation.
Inconel 601 contains aluminium for improved oxidation resistance in many high-temperature environments, while Inconel 600 suits various thermal and corrosive applications.
Check tensile strength, yield strength, elongation and hardness according to the required material condition and applicable specification.
Yes, they are used in furnaces and heat-treatment equipment where oxidation resistance and operating conditions are important.
Yes, using suitable procedures. Its work-hardening behaviour requires appropriate machining tools and welding practices.
Provide the required diameter, length, quantity, material specification, delivery location and any inspection or documentation requirements.
Contact Metalloy Steel with your required dimensions, quantity, material condition and delivery location to enquire about Inconel 600 Round Bars as per ASTM B166 and UNS N06600. Share any specific mechanical-property, inspection or documentation requirements so availability and the quotation can be assessed against your project needs.
