Monel 400 Round Bars are made from a nickel-copper alloy identified as UNS N04400 and are used in marine engineering, chemical processing and industrial equipment. If your application involves seawater exposure, hydrofluoric acid service or corrosive process conditions, this grade may be worth evaluating based on operating temperature, chemical concentration and mechanical requirements.
Metalloy Steel supplies Monel 400 Round Bars in India for industrial, fabrication and engineering requirements. Enquire about ASTM B164 UNS N04400 Round Bars in your required dimensions and quantity. Contact us to check availability and request a competitive quotation for your project.
Complete mechanical, dimensional, and standard parameters for ASTM B164 UNS N04400 bars.
| Parameter | Details |
|---|---|
| Product Name | Monel 400 Round Bar |
| Material | Nickel-Copper Alloy |
| UNS Designation | N04400 |
| ASTM Standard | ASTM B164 |
| EN Material Number | 2.4360 |
| EN Designation | NiCu30Fe |
| Nickel Content | 63.0% minimum |
| Copper Content | 28.0–34.0% |
| Available Forms | Round bars and rods |
| Supply Condition | Annealed or cold-worked, subject to availability and specification |
| Dimensions | Diameter and length as per requirement |
| Surface Finish | Black, Bright Polished, BA Finish |
International standard cross-references, chemical limits and mechanical data for UNS N04400.
| Standard / System | Designation |
|---|---|
| UNS | N04400 |
| ASTM | B164 for round bars and rods |
| EN Material Number | 2.4360 |
| EN Designation | NiCu30Fe |
| Werkstoff Reference | 2.4360 |
| AFNOR | NU-30M |
| BS Reference | NA 13 |
| JIS Reference | NW 4400 |
| Element | Chemical Composition (% by weight) |
|---|---|
| Nickel (Ni) | 63.0 min |
| Copper (Cu) | 28.0–34.0 |
| Iron (Fe) | 2.5 max |
| Manganese (Mn) | 2.0 max |
| Carbon (C) | 0.30 max |
| Silicon (Si) | 0.50 max |
| Sulfur (S) | 0.024 max |
| Property | Annealed Condition | Cold-Worked Condition |
|---|---|---|
| Density | Approx. 8.8 g/cm³ | Approx. 8.8 g/cm³ |
| Melting Range / Reference | Approx. 1350°C | Approx. 1350°C |
| Tensile Strength | Approx. 550 MPa (80,000 psi) | Approx. 760 MPa (110,000 psi) |
| Yield Strength (0.2% offset) | Approx. 240 MPa (35,000 psi) | Approx. 483 MPa (70,000 psi) |
| Elongation | Approx. 40% | Approx. 35% |
| Hardness | Depends on condition | Approx. B60–B95 HRB, depending on processing |
For other available alloy and stainless steel grades, explore our Round Bars range.
Get Pricing for Your SpecificationsEstimate real-time linear mass and total order weight for Monel 400 and other industrial alloy round bars with our live 3D visualizer engine.
Monel 400 Round Bars can be supplied in different conditions and dimensions depending on machining, fabrication and component requirements.
Offer greater ductility for applications requiring forming and machining.
Provide increased strength and hardness through controlled deformation.
Feature a smooth, bright surface finish, suitable for precision machining and applications requiring improved dimensional consistency.
Supplied in specified lengths to meet component dimensions and fabrication requirements.
* Availability of each condition, size and finish should be confirmed before ordering.

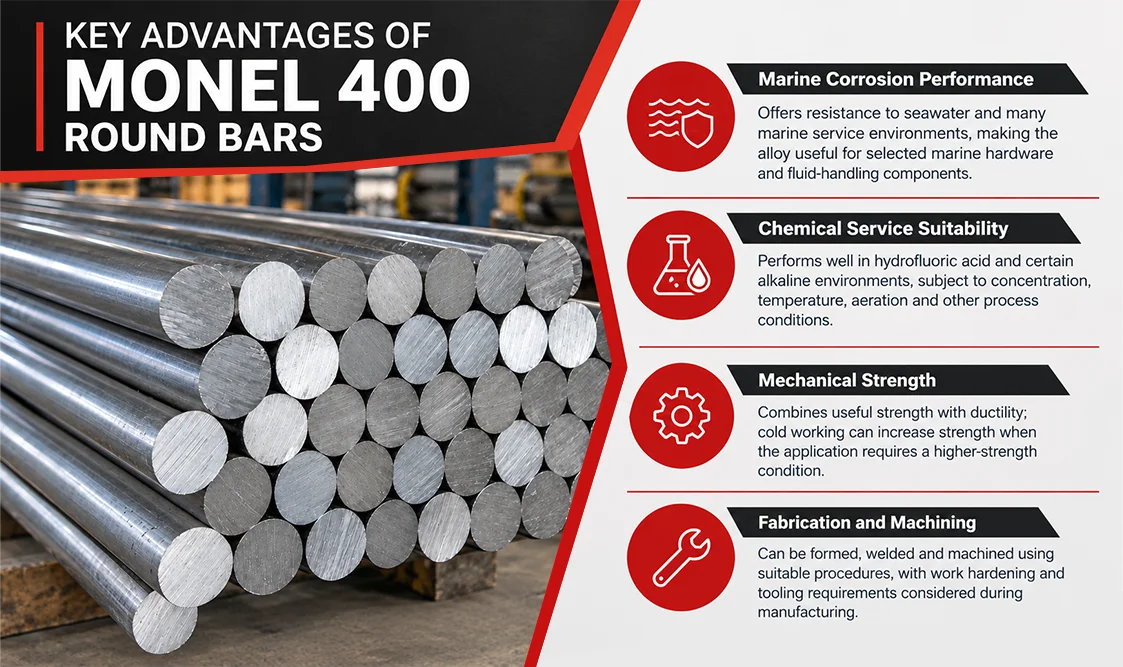

Engineered for superior resistance in severe chemical and marine environments.
Offers resistance to seawater and many marine service environments, making the alloy useful for selected marine hardware and fluid-handling components.
Performs well in hydrofluoric acid and certain alkaline environments, subject to concentration, temperature, aeration and other process conditions.
Combines useful strength with ductility; cold working can increase strength when the application requires a higher-strength condition.
Can be formed, welded and machined using suitable procedures, with work hardening and tooling requirements considered during manufacturing.
Typical components and industrial sectors relying on UNS N04400 alloy round bars.
| Industry | Typical Components / Uses |
|---|---|
| Marine Engineering | Pump shafts, fasteners, valve components and seawater-handling parts |
| Chemical Processing | Valves, pump components and equipment used in compatible chemical environments |
| Oil & Gas | Selected instrument, valve and fluid-handling components, subject to service conditions |
| Power Generation | Components in suitable water-handling and chemical-processing systems |
| Industrial Equipment | Machined shafts, pins, fittings and custom-engineered parts |
| Process Engineering | Components exposed to selected alkaline or hydrofluoric acid environments |
Metalloy Steel can discuss inspection and documentation requirements for Monel 400 Round Bars according to the purchase specification and order scope.
Documents heat-specific chemical composition and mechanical test results, where supplied.
Helps verify alloy identity and distinguish UNS N04400 from other nickel alloys.
Checks alloy composition against the specified material standard.
Includes tensile strength, yield strength, elongation and hardness testing, as applicable.
Verifies bar diameter, length, surface condition and specified tolerances.
Inspection by agencies such as SGS, Bureau Veritas or TÜV can be requested, subject to project requirements and availability.
Clear technical answers to frequent queries regarding Monel 400 round bar supply and specifications.
Yes, enquiries can specify ASTM B164 and UNS N04400 requirements. Confirm the required dimensions, material condition and documentation before ordering.
Bright-finish and annealed options can be discussed based on availability and processing requirements. Specify your preferred surface finish and supply condition when requesting a quote.
Share the required diameter, length, quantity and delivery location, along with any testing or certification requirements, to receive an accurate quotation.
Annealed bars generally offer greater ductility, while cold-worked bars provide higher strength; choose according to machining and design requirements.
It is used in many seawater applications, but flow velocity, temperature, deposits and crevice conditions should be considered during material selection.
Contact Metalloy Steel with your required dimensions, quantity, material condition and delivery location to enquire about Monel 400 Round Bars as per ASTM B164 and UNS N04400.
